Original file ‎(1,207 × 556 pixels, file size: 115 KB, MIME type: image/png)

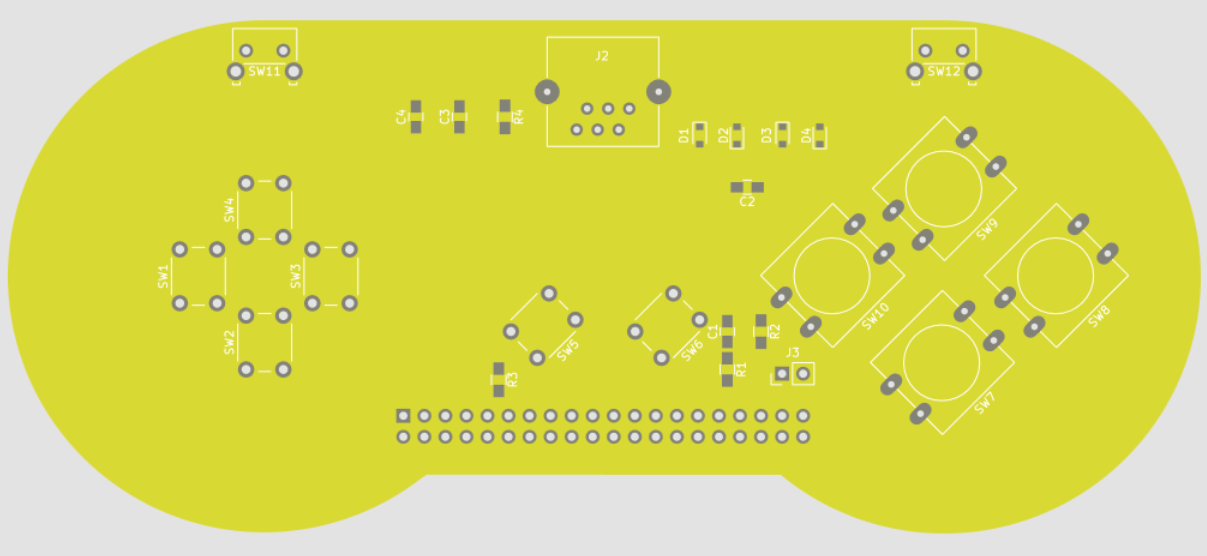

Preview of the version I made using KiCAD where I tested if I could create gerber files, and could generate a suitable board shape with KiCad, and to check placement issues. No traces were yet laid out.
