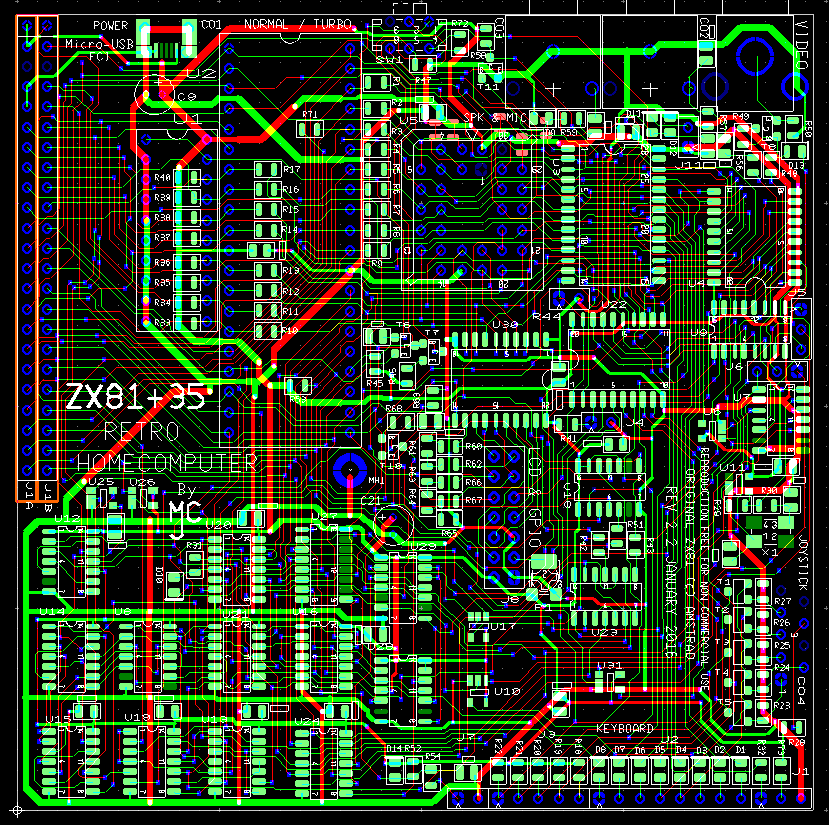

Final rev 2.2 layout ZX81+35
File history
Click on a date/time to view the file as it appeared at that time.
| Date/Time | Thumbnail | Dimensions | User | Comment | |
|---|---|---|---|---|---|
| current | 22:43, 26 January 2016 | | 829 × 825 (162 KB) | Mahjongg (talk | contribs) | Connected both GND pins of RCA connector for better compatibility with various connectors (with built in switches). |
| 22:03, 30 December 2015 |  | 829 × 825 (174 KB) | Mahjongg (talk | contribs) | 30 December, removed U10, added cap, renamed old U32 to U10 | |
| 01:56, 29 December 2015 |  | 905 × 961 (196 KB) | Mahjongg (talk | contribs) | Final rev 2.2 layout ZX81+35 |
