File:FULL RHOCOCO-z80.png
Jump to navigation
Jump to search

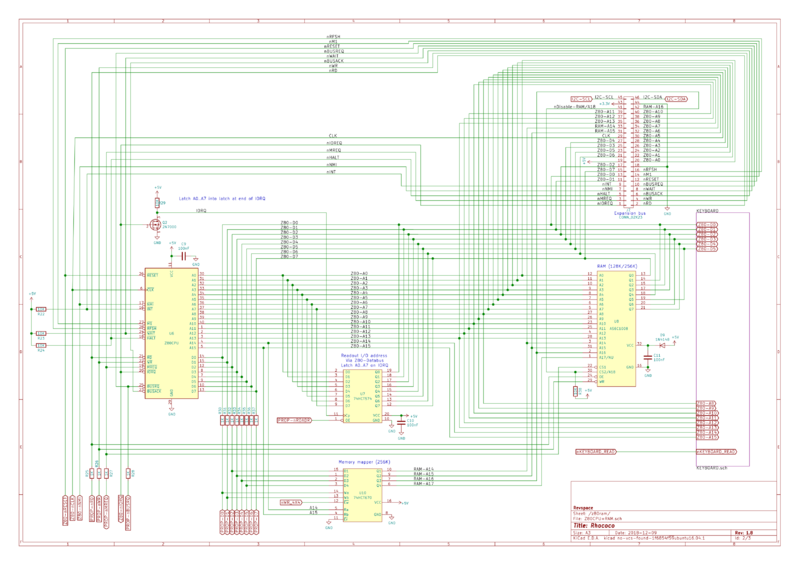

Size of this preview: 800 × 565 pixels. Other resolutions: 2,560 × 1,810 pixels | 3,309 × 2,339 pixels.

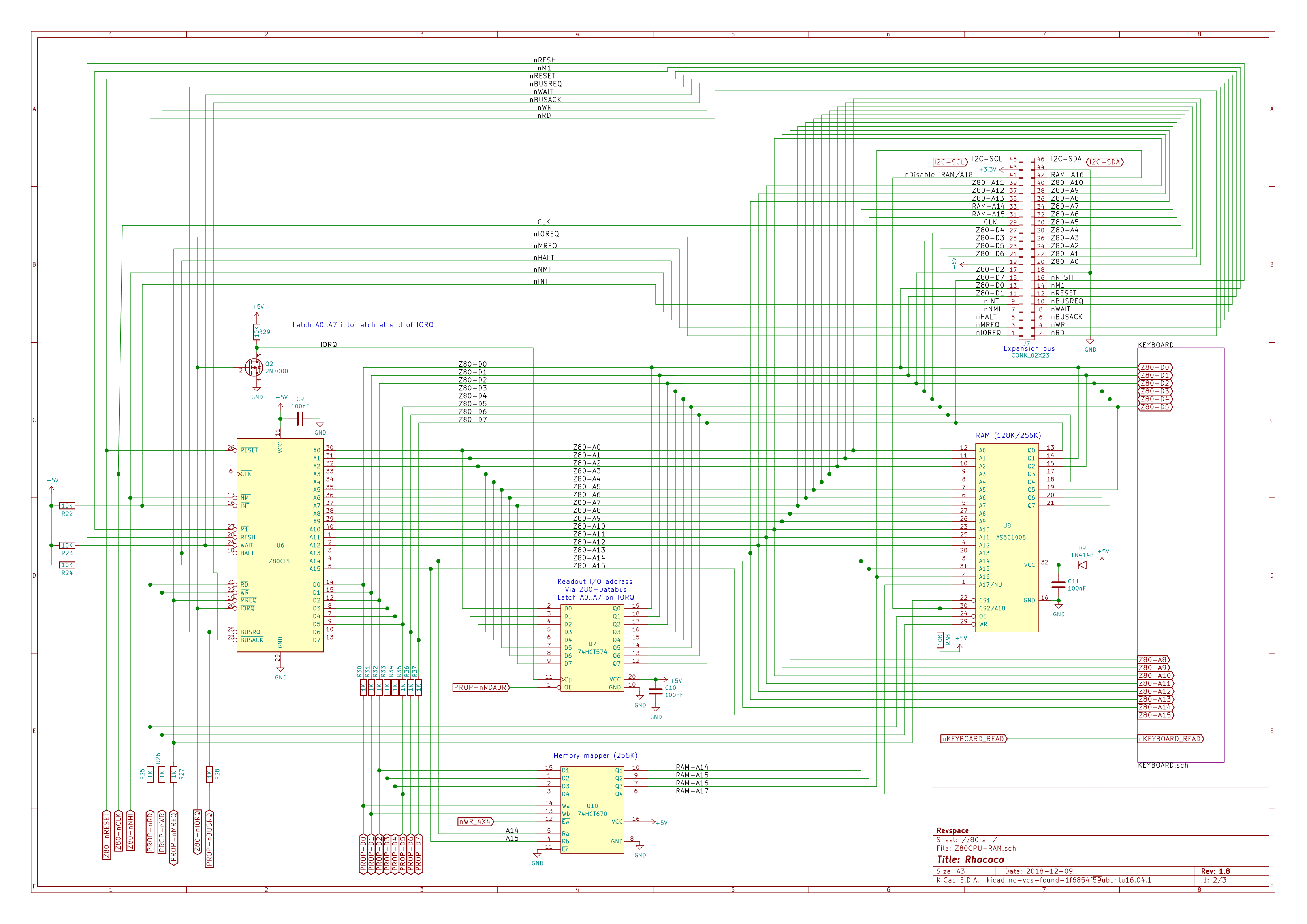

Original file (3,309 × 2,339 pixels, file size: 333 KB, MIME type: image/png)
File history
Click on a date/time to view the file as it appeared at that time.
| Date/Time | Thumbnail | Dimensions | User | Comment | |
|---|---|---|---|---|---|

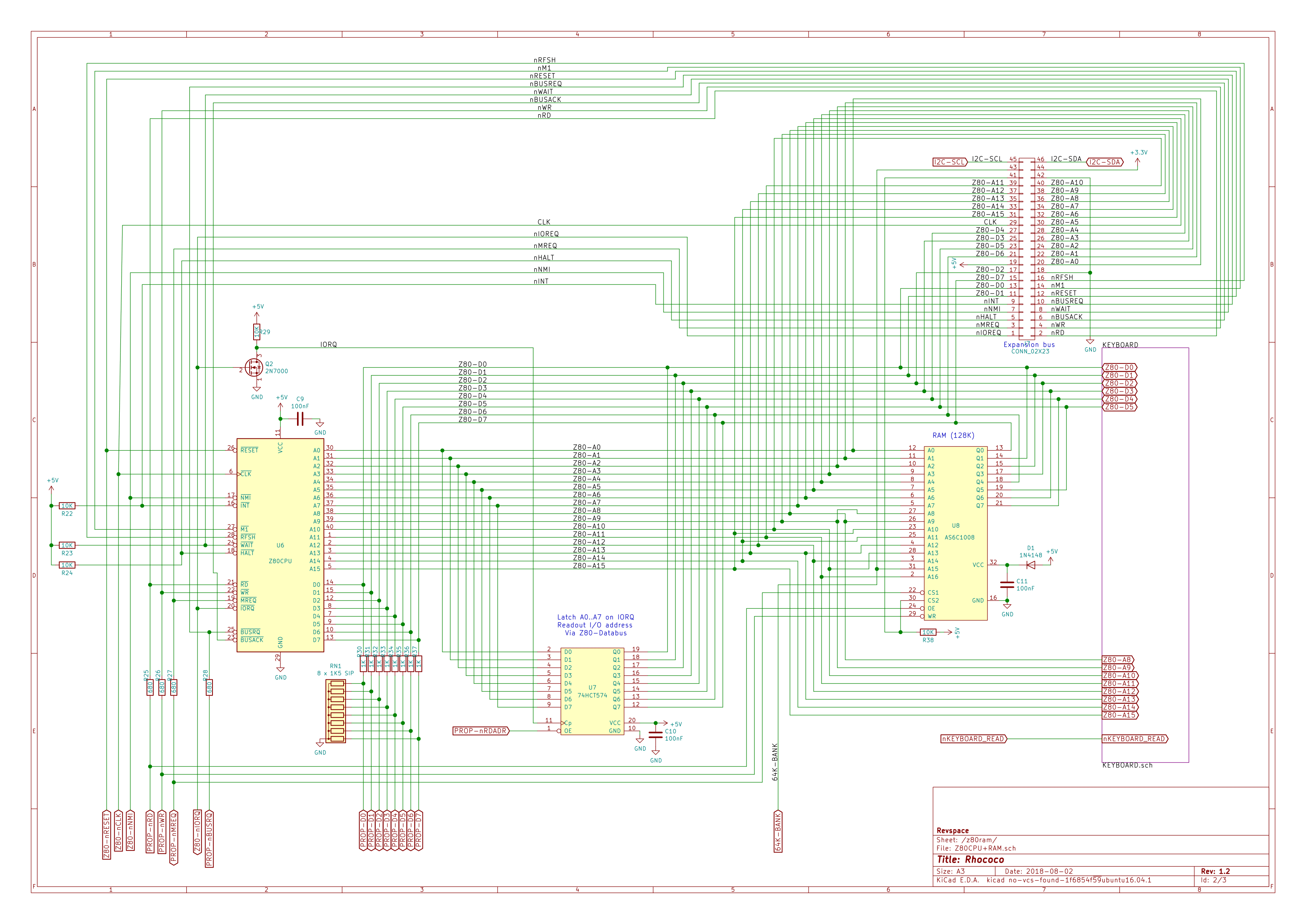

| current | 20:39, 9 December 2018 | | 3,309 × 2,339 (333 KB) | Mahjongg (talk | contribs) | Revision 1,8 with 256K memory mapper |

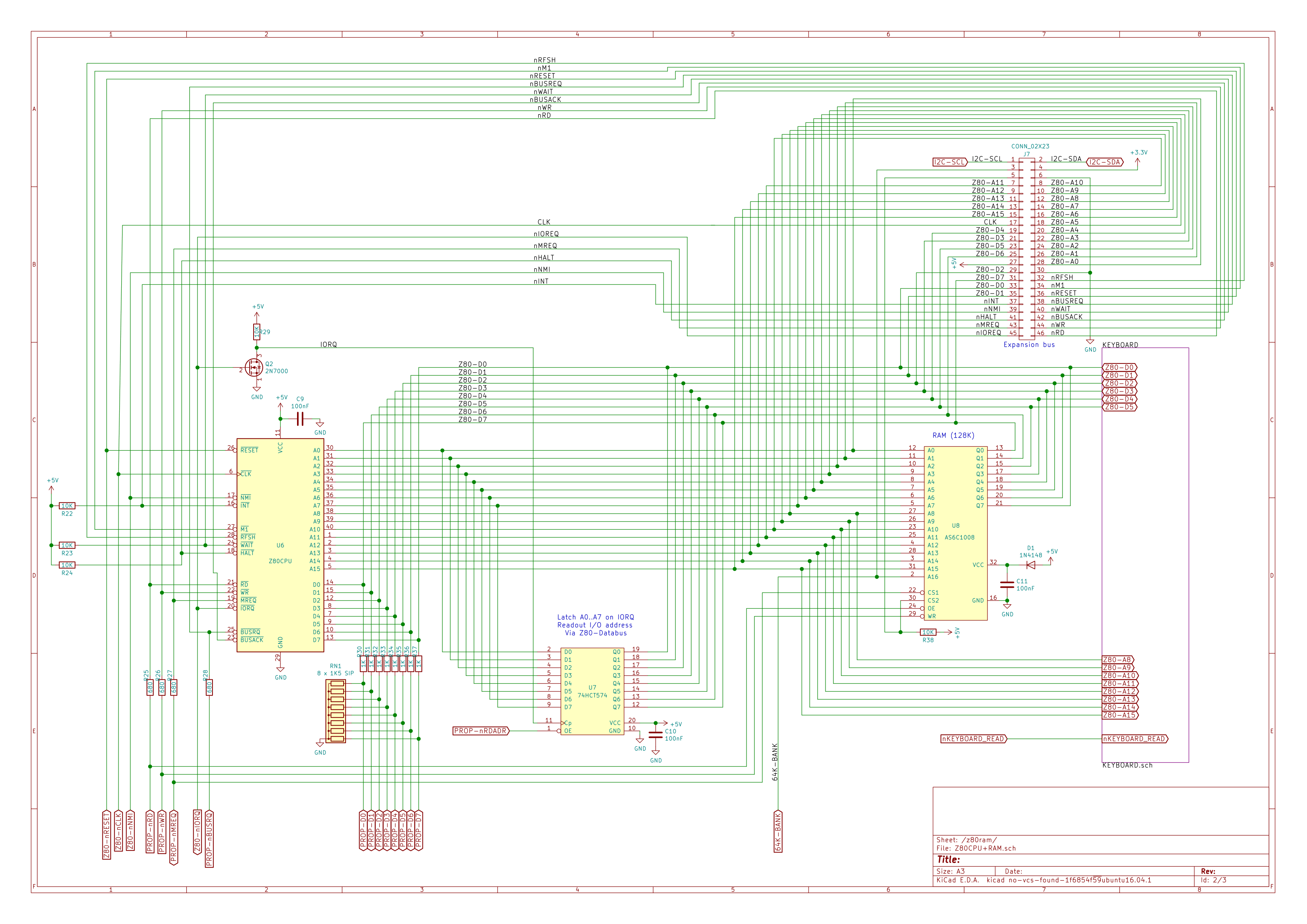

| 23:38, 1 August 2018 |  | 3,309 × 2,339 (315 KB) | Mahjongg (talk | contribs) | Rev 1.2 partly laid out, swapped expansion header vertically, swapped various address and data lines to the SRAM to optimize layout. (other two schema's did not change). | |
| 19:43, 1 August 2018 |  | 3,309 × 2,339 (298 KB) | Mahjongg (talk | contribs) | Twisted z80 data bus twice (errors corrected in data-bus) revision 1.1 | |
| 00:49, 1 August 2018 |  | 3,309 × 2,339 (298 KB) | Mahjongg (talk | contribs) | Rotated pinheader | |
| 21:42, 25 July 2018 |  | 3,309 × 2,339 (297 KB) | Mahjongg (talk | contribs) |
