Project Gigaohm Voltmeter
High impedance voltmeter
Status Completed
Contact thomas
Last Update 2017-12-24

Important Safety Information

This meter is only designed to be used for measuring very low current moderate to high voltage supplies. There is no input protection whatsoever other than the gigaohm resistor, which is rated for a maximum of 1500VDC. The banana jacks are not meant for high-voltage high-current applications. The isolation is not adequate for safe operation with power supplies capable of delivering anything more than a tickle's worth of current.

Operating instructions

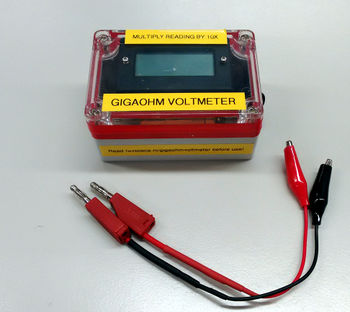

Connect circuit to meter with banana jacks. Turn on meter. Cross fingers. Multiply reading by 10 for actual voltage value. Keep in mind that the banana jacks (and cables) are most likely not rated for the voltages you are using them at, so suspend them off and away from conductive surfaces. Keep in mind that this is a high impedance device, and that whatever you are connecting it to is most likely also a high impedance circuit; Long cables can couple in a lot of noise. To minimize this problem I cobbled together a pair of really short banana-crocodile cables.

What's in the box?

This is nothing more than a resistive divider and a high impedance voltmeter. The divider consists of a Dale 1 gigaohm 1.5kv 1% tolerance resistor, and a regular anonymous 100K carbon resistor. Crashjuh supplied a Dynatek 200 millivolt 200 megaohm input impedance panel meter, which is connected across the 100k resistor. Because of the 200mV range, the reading shown on the display does need to be multiplied by 10x.

Why?

It's very useful for measuring DC voltages without having to worry about loading down the circuit under test. The input impedance of a regular multimeter can sometimes be too much of a burden for circuits incapable of delivering sufficient current to maintain voltage while taking a reading. Thanks to the gigaohm input impedance this meter draws only 1 nanoamp per volt of deflection. I built it to measure the output of the feeble high voltage supplies generally used for geiger counters and photomultipliers.

It doesn't work

Put it on my Samla (thomas), and let me know. Thanks!
