Project Transpotter
Status Abandoned
Contact Sebastius
Last Update 2022-08-08

Safety

Please note that Hoverboards are very dangerous and way overpowered toys. Some of the dangers:

  • Motors are really powerful and when the firmware glitches or a sensor fails, you will lose control and cause accidents
  • Most batteries are horrific and will flame, burn, explode or cause other misery during charging, usage or just whenever the damn thing feels like exploding.
  • Most controllers are built with the cheapest parts and will burn

Be careful and NEVER charge a hover board unattended.

Story

I found an interesting talk on Moving Objects by JanHenrik and NiklasFauth: https://media.ccc.de/v/gpn18-95-howto-moving-objects which was very instructive on how to build a software driven movable platform. You could build it with a chair on top or just a sheet of plywood and use it as a transporter. The simplicity of it and the really low price point of broken hover boards got me convinced i should build a movable object!

Purchasing

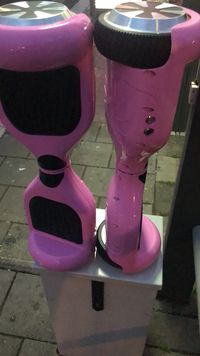

Broken hoverboards can be bought cheaply. These two (User:F0x got the other one) we purchased for 15 euro's each and were brand new DOA's (dead batteries in both, and one had a gyro issue). So the motors were never used!


Initial experiments

To test the microcontroller and motor-drivers i first made a rig for testing and uploaded the firmware. I could control motor speed with two potentiometers!


Construction

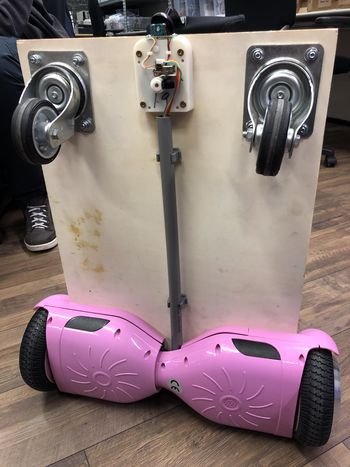

Two sheets of 18mm plywood, 40cmx60cm. Two old caster-wheels in front, the motors in the back. I used the old metal frame to mount the motors and electronics and the pink fenders were reinstalled for extra safety and because they look awesome. The fenders add two safety features: protect a rider from the wheels and in the event of an uncontrollable speed you can just flip it over and disconnect the battery. Metal frame was cut down to size and i cut a few centimeters of one of the plastics to make it fit the 40cm width of the board.

85F56E82-524C-49C5-8B28-123FAEA7CE1F.jpeg D64CDCC6-B0F7-414B-BEE8-1CEF19368AFD.jpeg

300636B8-9384-4E0C-A36E-5E547FEC40C0.jpeg 9613A0EC-681C-4E41-90F1-7C75919AA4B1.jpeg

Update 2019-02-02

3A27934D-5EA2-412C-8B84-31F043CE65AC.jpeg 67501B27-150C-4F55-933B-4A38721E0F3A.jpeg 13F5071F-C9A1-4AFF-9299-C70D6B1143A7.jpeg

Installed the GameTrak in a nice sturdy box so it's a little bit more safe to use and hopefully this sensor won't break. Next up is an emergency stop!

Videos

https://youtu.be/mWy38XpZTqE - My first test with two cases of Mate on top and using the GameTrak sensor.

Resources

Future plans

  • Replace the capacitors with properly made ones ;)
  • Maybe write some more safety features, like something to detect loss of signal with nunchuck or Gametrak, and prevent immediate acceleration. Or maybe slow down the acceleration-curve a bit.
  • Do a nicer bit of woodworking, maybe laser-engrave the top, add something to attach a seat easily
  • Make a proper connection box for software updates, battery-disconnect (emergency stop?) and wii nunchuck connector
  • Maybe some waterproofing

Accident log

Break right!

When riding while someone was controlling the transpotter with the gametrak sensor, the board did two hard rights, the second causing the rider to fall of and nearly smash an arm or some teeth. Luckily the rider was made of rubber and springs ;)

Cause: probably related to the breaking of the gametrak (see below)

Thoughts: software needs to think a bit about sudden increases in speed. Maybe do some more measurements and compare?

Burnout

Yeah i caused a burnout on the space-floor. The Gametrak broke, and the board went into full power against a post.The damage was done in under ten seconds...

71C29586-7B0D-4F6B-8DC7-9DB927665A0A.jpeg 8BB4493D-FC8E-46D3-BC68-B441BD76EE52.jpeg

Cause: A disconnected distance sensor causes the motors to go full speed.

Thoughts: software needs to cease function when gametrak breaks, failing high (internal pullup?). Maybe install pulldowns? Speed-limits? Might want to invert the gametrack that infinite resistance (HIGH input) will cause lowest speed (standing still)
