Project LED-skirt
Photo5933744821665640847 - by WheezeNL.jpg
Status In progress
Contact Noor
Last Update 2020-02-18

To do

  • Reinforce wire connections with hot glue and/or zip ties.
  • Add hook to fasten waist of crinoline.
  • More programming designs.
  • Get aurora borealis palette working properly on circles and panel, and shooting stars display on strips.
  • Replace strip in bottom tube with side-emitting LEDs?

LED count

  • 240 - circles (all used except one)
  • 64 - 8x8 panel.
  • 23 - strip 1.
  • 23 - strip 2.
  • 17 - strip 3.
  • 84 (?) - strip along bottom tube.

Total: 451 LEDs.

Timeline

Construction

2019-11-06 - 2019-11-11

Bought:

Old sketches:

2019-11-04 224115 - design1.png2019-11-04 224123 - led skirt 2.png2019-11-04 224131 - led skirt 3.png 2019-11-05 215433 - DSC06381.jpg2019-11-05 215437 - DSC06382.jpg

2019-11-12 - 2019-11-24

  • Played with layout of LEDs, waiting for items to arrive.
  • Tested out LEDs under layers and on crinoline.

2019-11-23 220454 - DSC06537.jpg 2019-11-23 221724 - DSC06542.jpg 2019-11-24 173747 - DSC06546.jpg

2019-11-25

  • Took apart seams of inner layers of black skirt to add extra panels to fit over crinoline.

2019-11-26

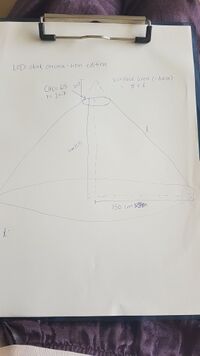

  • Measured skirt on top of crinoline. Extra panel with bottom arc length of 100+cm.
  • Decided to go with 6 strips of 23 LEDs each. Cut one strip.

2019-11-26 190451 - DSC06570.jpg 2019-11-26 190712 - DSC06573.jpg

2019-12-03 - 2019-12-05

  • Tested out LED rings. One wire was detached so had to be soldered on.

2019-12-03 174905 - DSC06589.jpg 2019-12-05 182443 - DSC06618.jpg

2019-12-06

  • Punched holes in crinoline, used zip ties to attach first LED strip.
  • Took apart LED circles and tested FastLED programs.
  • Set up LED circles, one strip, and panel together on crinoline and used zip ties to place everything but the panel on crinoline.
  • Ran FastLED programs on everything together.
  • Pictures posted by others to Facebook, RevSpace kiekjes, Twitter.

2019-12-06 193923 - DSC06635.jpg 2019-12-06 194452 - DSC06637.jpg 2019-12-06 200017 - DSC06639.jpg 2019-12-06 220618 - DSC06666.jpg 2019-12-06 220632 - DSC06667.jpg 2019-12-06 220710 - DSC06668.jpg

2019-12-20

  • Rearranged LED circles, mounted some back on with velcro. Mounted panel with velcro.
  • Cut two more strips. Attached wires to one and mounted it horizontally at an angle.

2019-12-20 214116 - DSC06775.JPG

2019-12-22

  • Folded up bottom hem and put velcro strips all across to partially make a tube along bottom.

2019-12-22 202231 - DSC06794.jpg 2019-12-22 203241 - DSC06795.jpg

2019-12-24

2019-12-25

  • Measured and cut panel for black layer of skirt.

2020-01-10

  • Used fabric glue along bottom hem tube, in between velcro strips.
  • Soldered wires to more LED strips.

2020-01-10 145148 - DSC08359.jpg 2020-01-10 165310 - DSC08360.jpg 2020-01-10 201701 - DSC08367.jpg 2020-01-10 205118 - DSC08368.jpg 2020-01-10 211717 - DSC08370.jpg 2020-01-10 213030 - DSC08371.jpg 2020-01-10 223034 - DSC08375.jpg 2020-01-10 225615 - DSC08377.jpg

2020-01-11

  • Soldered wires to remaining LED strips.
  • Connected everything together, hooked up to an Arduino.

2020-01-11 185141 - DSC08388.jpg 2020-01-11 191121 - DSC08389.jpg 2020-01-11 202121 - DSC08392.jpg 2020-01-11 202125 - DSC08393.jpg 2020-01-11 202717 - DSC08394.jpg 2020-01-11 203657 - DSC08396.jpg 2020-01-11 204945 - DSC08397.jpg 2020-01-11 210350 - DSC08401.jpg

2020-01-17

  • Added more velcro bits to fix placement of LEDs.
  • Experimented with modifying FastLED programs. BPM on circles?

2020-01-17 170344 - DSC08486.jpg 2020-01-17 174034 - DSC08489.jpg 2020-01-17 183719 - DSC08492.jpg 2020-01-17 195703 - DSC08503.jpg

2020-01-18 - 2020-02-13

  • Experimented more with FastLED programs.
  • For custom color palettes, used PaletteKnife bookmarklet to generate codes for palettes. Add to sketch directly, or add to Arduino/libraries/FastLED/colorpalettes.cpp and palette name to colorpalettes.h.
  • Cut up plastic bag for panel over skirt, attached with velcro.
  • Finished up everything on black outer skirt.
  • Bought 2x SilverCrest power banks.

2020-01-28 202925 - DSC08667.jpg 2020-01-28 205606 - DSC08678.jpg 2020-01-28 205645 - DSC08682.jpg 2020-01-31 201610 - DSC08697.jpg 2020-02-05 222300 - DSC08979.jpg 2020-02-07 214159 - DSC09010.jpg 2020-02-07 214322 - DSC09012.jpg 2020-02-09 184847 - DSC09137.jpg 2020-02-11 182635 - DSC09159.jpg 2020-02-11 185833 - DSC09164.jpg 2020-02-11 201149 - DSC09169.jpg 2020-02-11 233802 - DSC09223.jpg 2020-02-13 170031 - DSC09231.jpg 2020-02-13 195455 - DSC09237.jpg 2020-02-13 201536 - DSC09239.jpg 2020-02-13 204153 - DSC09242.jpg 2020-02-13 205404 - DSC09244.jpg 2020-02-13 213221 - DSC09245.jpg

HackerHotel 2020

2020-02-14 -2020-02-16

  • Debut as Princess of Lights went excellent, with paparazzi taking pictures and video all weekend.
  • However, about a dozen wires broke off throughout the weekend and had to be soldered back on, some with reinforcements of zip ties to hold them in place.
  • LEDs kept weighing down crinoline, and since the string in the waist came out a long time ago, the velcro was not enough to hold it up. Used an opened paperclip to hold it together, and then a safety pin. Need to add a hook fastener, or use a large safety pin (through grommeted holes) or some other kind of fastener.

2020-02-14 215110 - DSC09343.jpg 2020-02-15 004016 - DSC09369.jpg Photo5933744821665640847 - by WheezeNL.jpg
