Project USB-C Protoboard

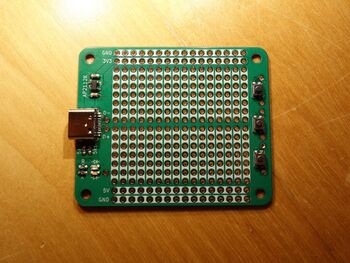

A breadboard-style protoboard powered via a USB-C connector
Status Completed
Contact Brainsmoke
Last Update 2024-07-28

I've got tired of repurposing PCBs with USB-connectors, so this board has an integrated resistors to signal 3A power draw @ 5V, as well as a 3v3 regulator. One of the power rails provides 3v3, the other 5V.

Repo: https://github.com/brainsmoke/usb_proto

Protoboards are available next to the other protoboards in the solder area.

https://revspace.nl/kiekjes/photos/20240712/P1060327.JPG
