Treinonderdelen/ICMm/Bestemmingsaanduiding

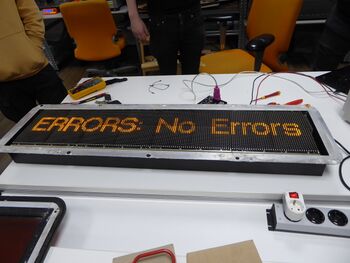

Het LED-display aan de buitenkant dat aangeeft waar de trein naartoe gaat.

• Fabrikant: Focon Electronic Systems A/S
• Onderdeelnummers:
  • Nedtrain:
    • YA082984
    • YA08298C
  • Focon:
    • Label: 800313-02 ("External Side Display (ESD)")
    • In software: 390024 ("Focon Electronic Systems A/S DSB dot 16")

Hardware

Grotendeels gebaseerd op dezelfde hardware als het SGMm-display, maar véél beter in elkaar gezet.

Resolutie: 160 x 32

Connectors

Één Harting Han 24DD-connector aan de bovenkant van het display, met de volgende pinout:

   _/-----------\_
 _/  21  - 23  -  \_
/    17  - 19  -    \
|    13  -  -  -    |
|     9  -  -  -    |
\_    -  -  -  -   _/
  \_  1  2  -  - _/
    \-----------/

 1: power Vcc
 2: power GND
 3: N/C                             [no pin]
 4: N/C                             [no pin]
 5: N/C                             [no pin]
 6: N/C                             [no pin]
 7: N/C                             [no pin]
 8: N/C                             [no pin]
 9: address bit (0?)
10: address bit (1?)                [no pin]
11: address bit (2?)                [no pin]
12: address bit (3?)                [no pin]
13: RS-485 GND
14: RS-485 GND (for address bit 2?) [no pin?]
15: RS-485 GND (for address bit 1?) [no pin?]
16: RS-485 GND (for address bit 0?) [no pin?]
17: RS-485 in-
18: RS-485 in-                      [no pin]
19: RS-485 out-
20: (debug RX?)                     [no pin]
21: RS-485 in+
22: RS-485 in+                      [no pin]
23: RS-485 out+
24: (debug TX?)                     [no pin]

Één interne JST-connector van de hoofdconnector naar het logica-bord, niet nodig voor externe verbinding:

Pin  1: RS-485 IN+       [external: pins 21 and 22]
Pin  2: RS-485 IN-       [external: pins 17 and 18]
Pin  3: signal GND       [external: pins 13-16]
Pin  4: (debug RX?)      [external: pin 20]
Pin  5: (debug TX?)      [external: pin 24]
Pin  6: signal GND       [external: pins 13-16]
Pin  7: address bit (0?) [external: pin 12]
Pin  8: address bit (1?) [external: pin 11]
Pin  9: address bit (2?) [external: pin 10]
Pin 10: address bit (3?) [external: pin 9]
