Amiga 500: Difference between revisions

Revision as of 10:20, 21 June 2026

Project Amiga 500

Amiga 500 - Kickstart 1.2 Serial Number: 69174 Motherboard revision 3 Missing the left shift keycap This case has the A500 REV 3 motherboard.
Status	In progress
Contact	Crashjuh
Last Update	2026-06-21

@@ Line 2: / Line 2: @@
   |Name=Amiga 500
   |Picture=Amiga 500 Serial No. 69174 mobo REV 3.jpg
-  |Omschrijving=Amiga 500 - Kickstart 1.2<br>Serial Number: 69174<br>Motherboard revision 3<br>Missing the left shift keycap
+  |Omschrijving=Amiga 500 - Kickstart 1.2<br>Serial Number: 69174<br>Motherboard revision 3<br>Missing the left shift keycap<br>This case has the A500 REV 3 motherboard.
   |Status=In progress
   |Contact=Crashjuh
@@ Line 8: / Line 8: @@
-<!-- [[File:Amiga 500 mobo REV 3.jpg|thumb|...]] -->
+<!-- [[File:Amiga 500 mobo REV 3.jpg|thumb|Amiga 500 motherboard REV 3]] -->
-<!-- [[File:Amiga 500 mobo REV 6A.jpg|thumb|...]] -->
+[[File:Amiga 500 mobo REV 6A.jpg|thumb|Amiga 500 motherboard REV 6A]]

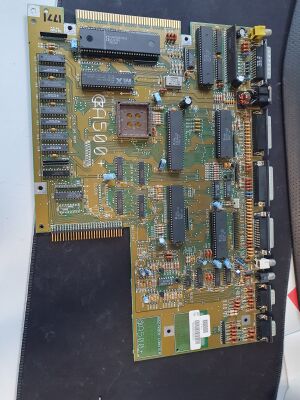

+[[File:Amiga 500+ mobo original REV 8A.jpg|thumb|Amiga 500+ motherboard original REV 8A.<br>Unpopulated Real-Time Clock (RTC) circuitry and battery.<br>Capacitor mod for FAT AGNUS 8375 318069-16.]]
-<!-- [[File:Amiga 500+ mobo REV 8A.jpg|thumb|Original Rev 8A board with capacitor modification]] -->
 <!-- FAT AGNUS CSG 8375 ( 390544-01 ) AMIGA 500+/A2000 2 MB Chip RAM-->
 <!-- FAT AGNUS CSG 8375 ( 318069-16 ) AMIGA 500+/A2000 1 MB Chip RAM -->
