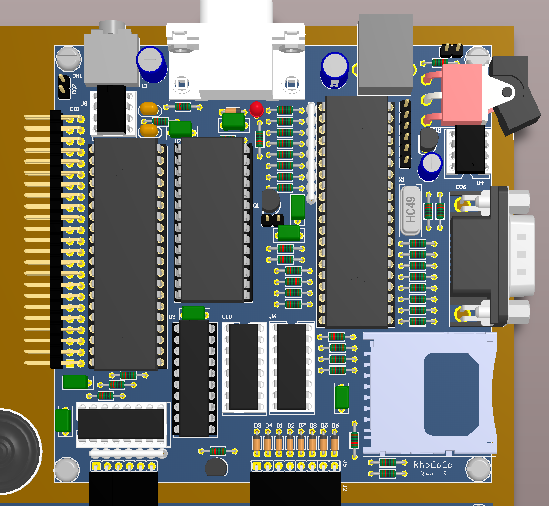

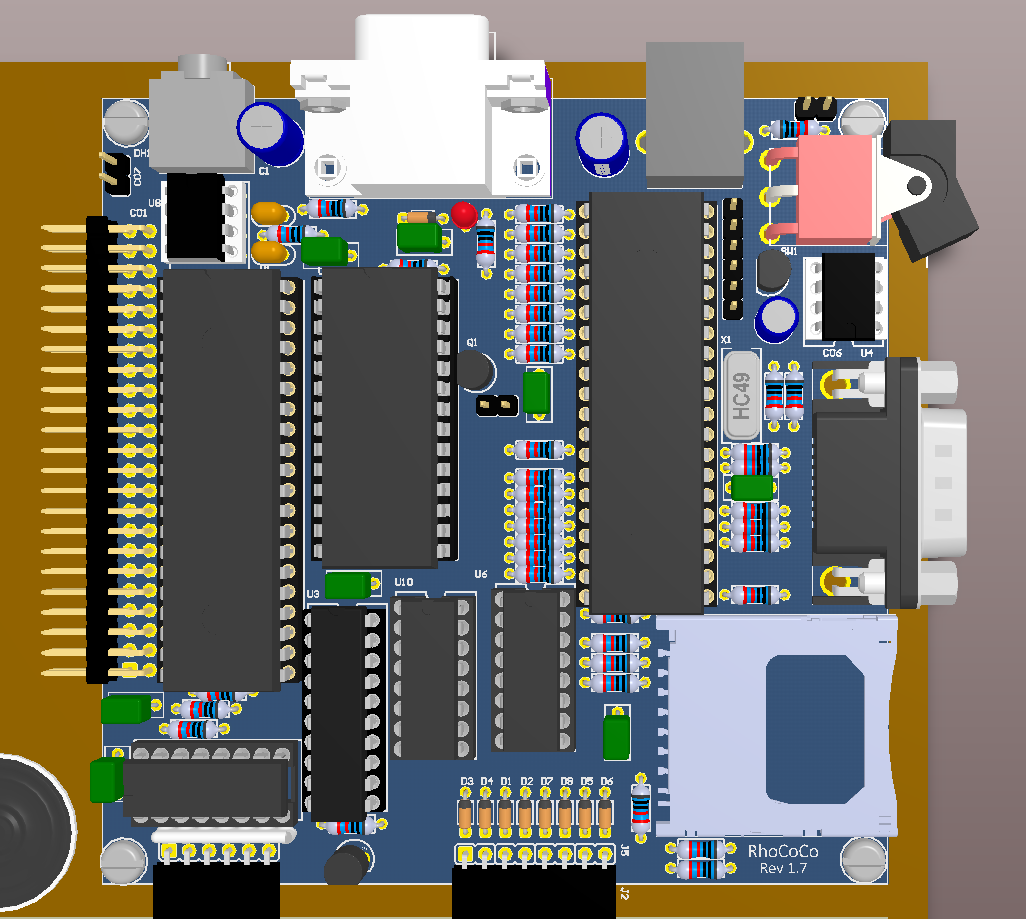

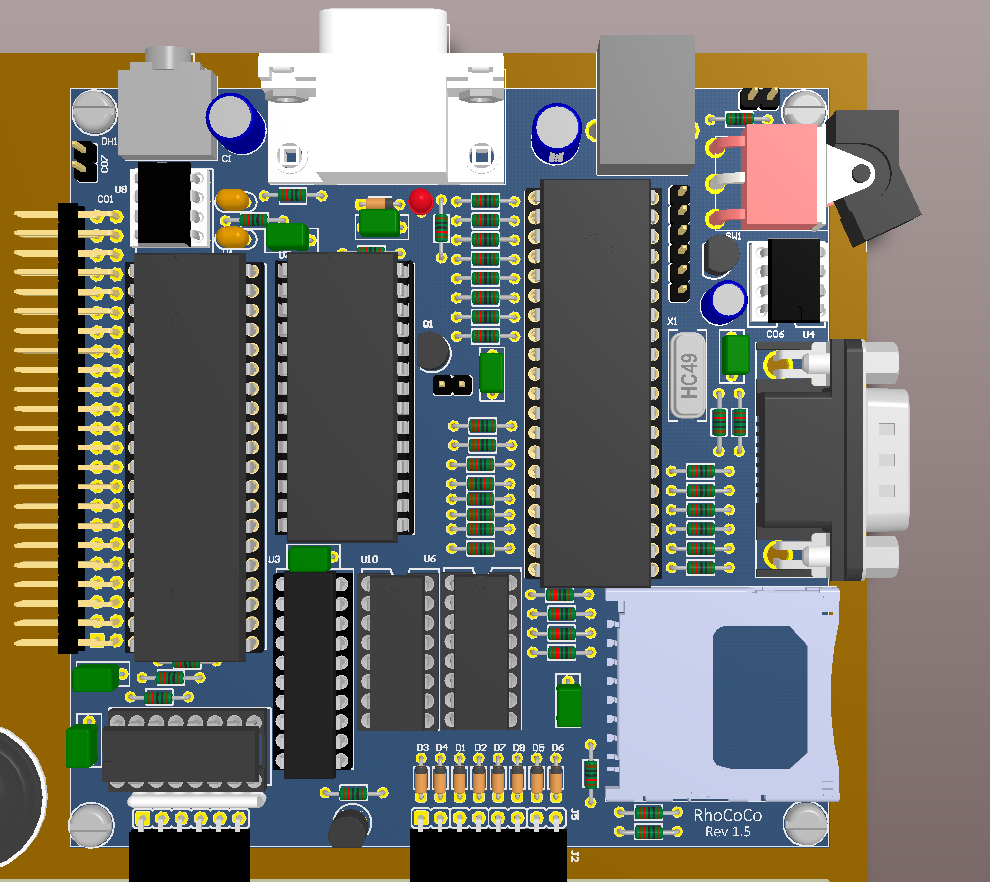

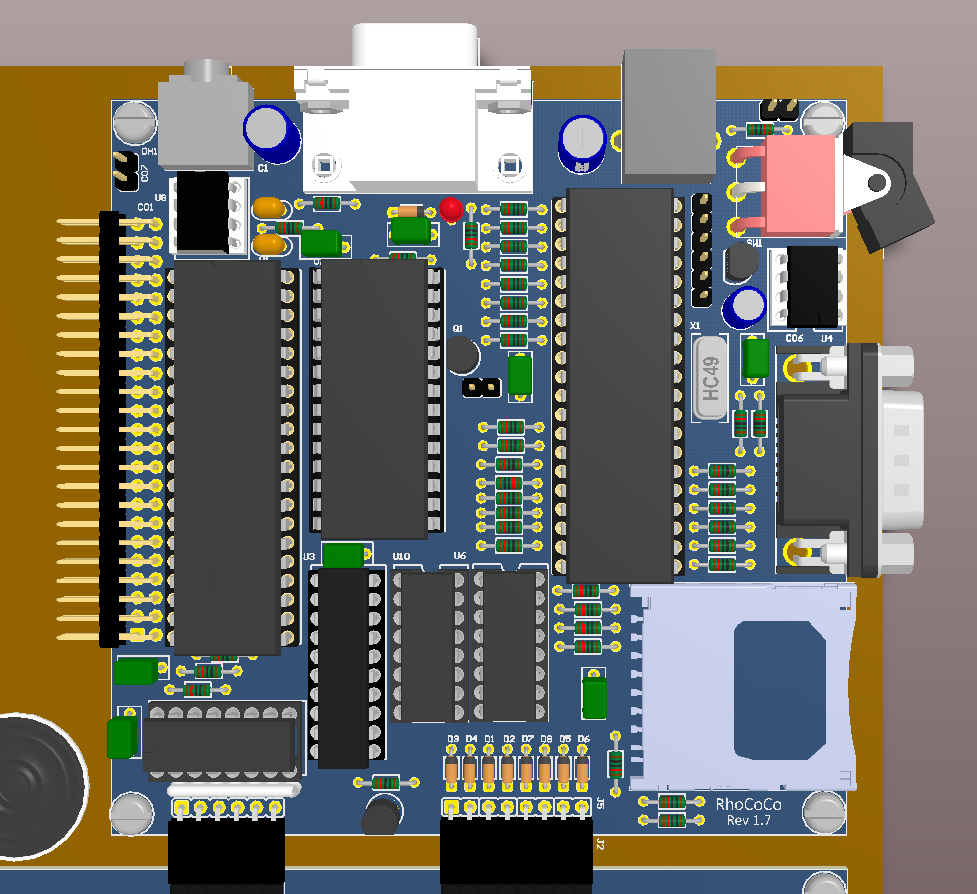

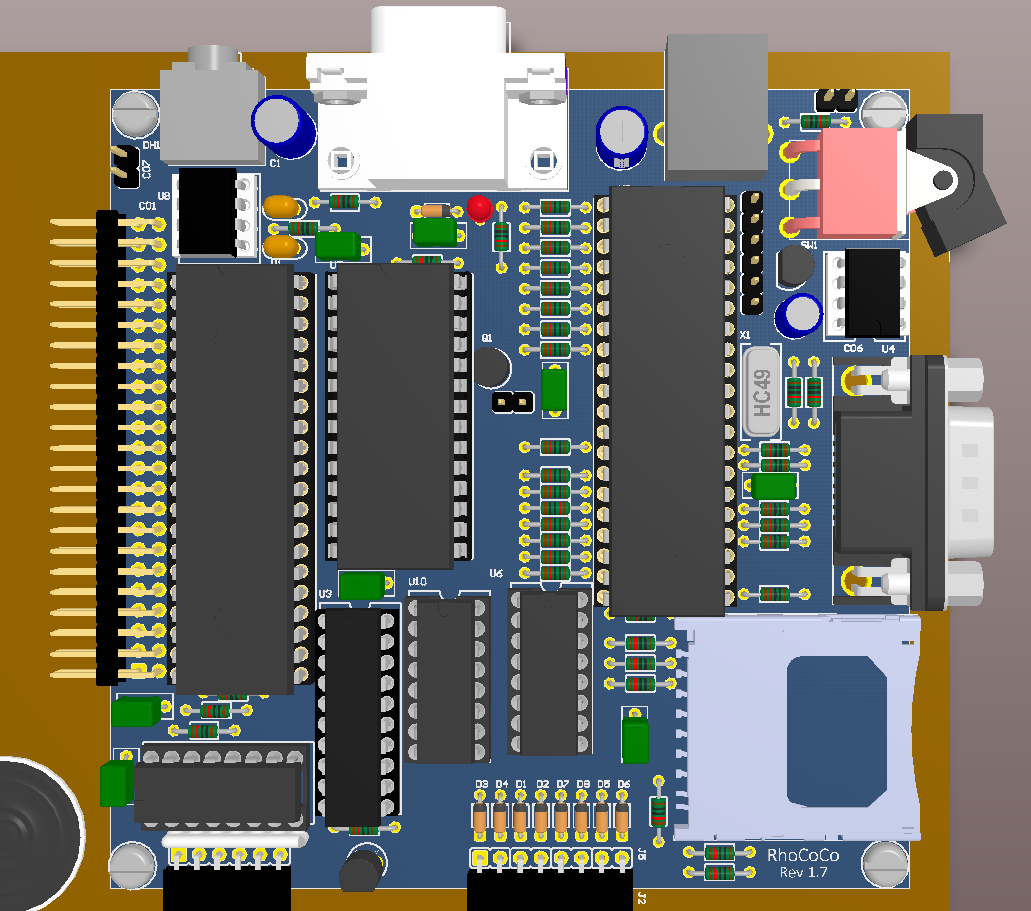

Rhococo with an added 74LS670 (16-pin DIP), fitted to the left of the other 16-pin DIP, the PCF858574A. With the 74LS670 I should be able to do memory mapping with 8 16K banks (128K).
