File:RhoCoCo Rev 1,6.png

From RevSpace
Jump to: navigation, search
Original file(700 × 673 pixels, file size: 72 KB, MIME type: image/png)

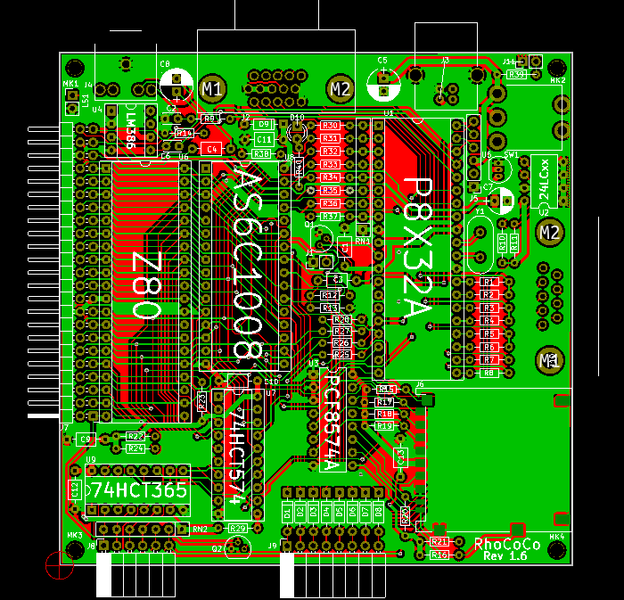

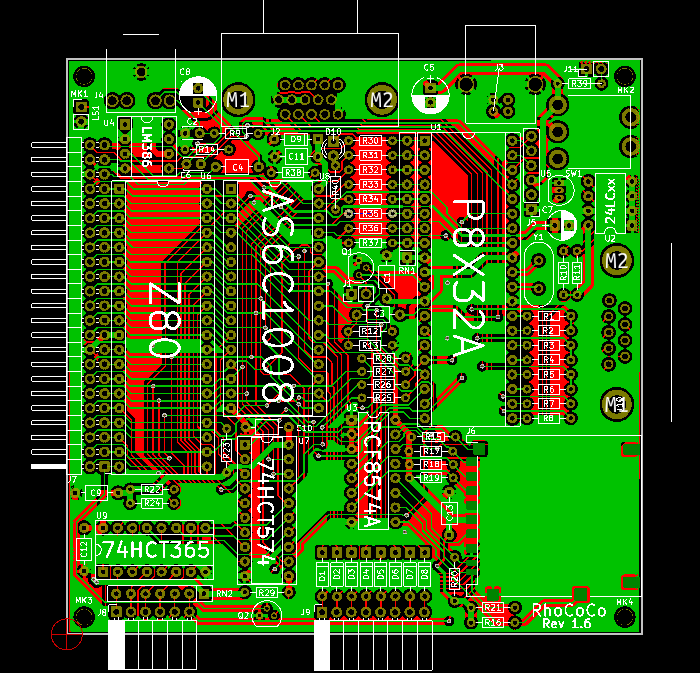

Added connection for power LED, and an on-board (optional) 3mm Debug LED on the second 64K-bank select line (that is unlikely to be needed in the stage where a debug LED is needed, and could be handy when debugging page switch routines).

File history

Click on a date/time to view the file as it appeared at that time.

Date/TimeThumbnailDimensionsUserComment
current21:43, 23 October 2018Thumbnail for version as of 21:43, 23 October 2018700 × 673 (72 KB)Mahjongg (Talk | contribs)Added connection for power LED, and an on-board (optional) 3mm Debug LED on the second 64K-bank select line (that is unlikely to be needed in the stage where a debug LED is needed, and could be handy when debugging page switch routines).
