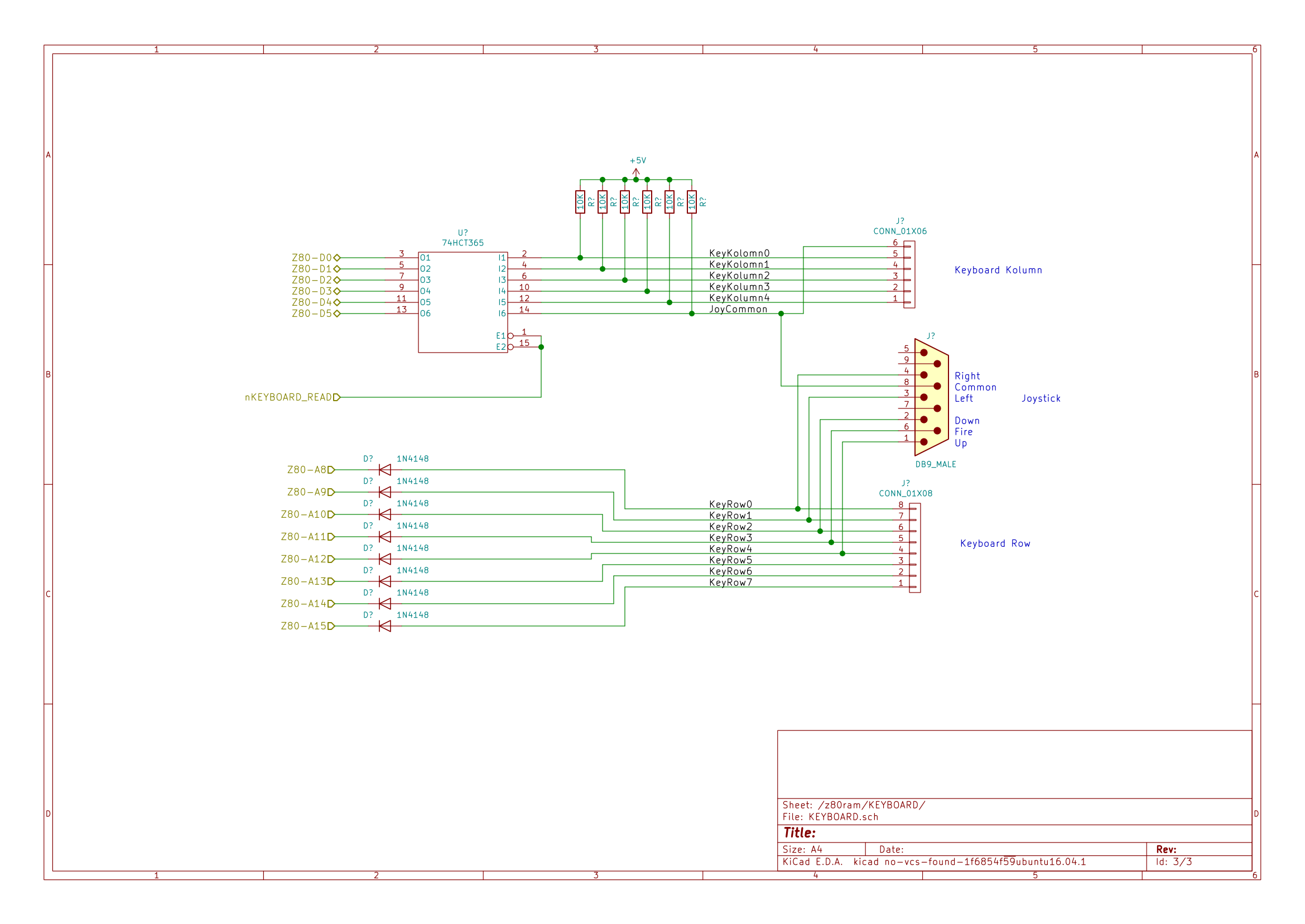

First version, actual matrix configuration will come later, as its on a separate PCB. Heavily based on the ZX81/Spectrum concept. Expanded column header with one position, this makes an cursor key arrangement and extra keys possible.
File history
Click on a date/time to view the file as it appeared at that time.
| Date/Time | Thumbnail | Dimensions | User | Comment | |
|---|---|---|---|---|---|
| current | 09:23, 18 July 2018 | | 2,339 × 1,656 (96 KB) | Mahjongg (talk | contribs) | First version, actual matrix configuration will come later, as its on a separate PCB. Heavily based on the ZX81/Spectrum concept. Expanded column header with one position, this makes an cursor key arrangement and extra keys possible. |
